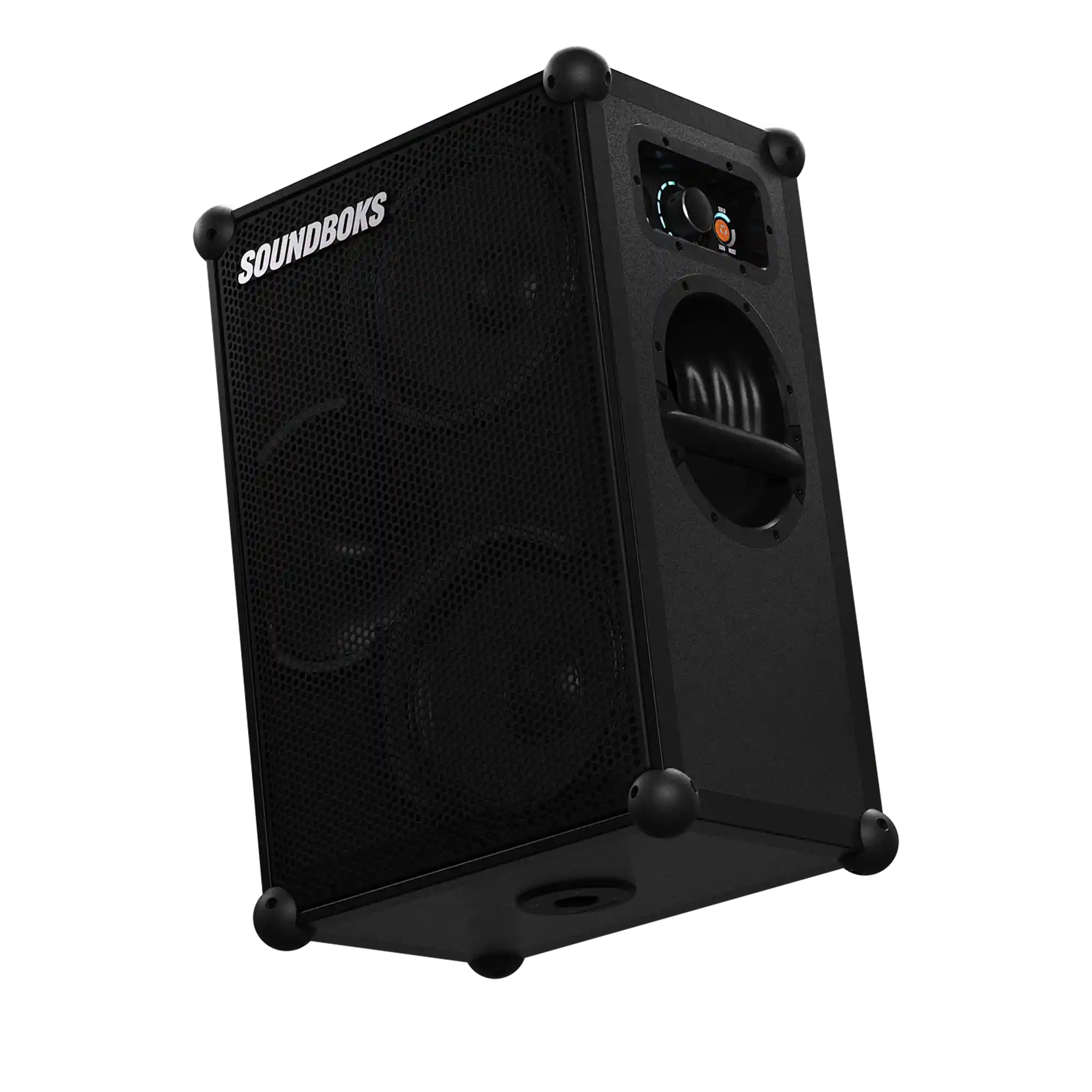

Soundboks 4

Amplifier
Merus Audio eximo® amp switching
3 × 72W RMS class D amplifiers

Driver Units
2 × 10” 96 dB (1W/1m) woofers
1 × 1” 104 dB (1W/1m) compression driver tweeter

Acoustics
Max SPL 126 dB
Effective frequency range: 40 Hz - 20 kHz
Pulse Reflex port
Soundboks Adaptive Bass Enhancer DSP

Weight
16,1 kg

Dimensions
66 × 43 × 32 cm (H × W × D)

Materials
Poplar cabinet
Powder-coated aluminum frame
Powder-coated steel handles
Silicone ball corners
SMP temperature-flex adhesive
Built-in reinforced top hat
Snap-on removable powder coated steel grill

Features
IP65 rated electronics coating

UI Panel
Volume control knob with LED indicators
TeamUP button with LED indicators for Solo/Host/Join mode
Power On/Off button
Bluetooth LED indicator

Life (with The Battery)
40 hours at mid-volume
6 hours at full volume
2 hours full recharge with The Charger

Cell Type
12.8V, 7.8Ah Lithium Iron Phosphate (LiFePO4)
99.84 Wh or 7.8 Ah capacity
Temperature range:
Charge condition: 0°C to 45°C
Discharge condition: -15°C to 55°C

Design
Reinforced ABS casing - IPX6
5-step LED battery-life indicator
Heavy-duty DC-connector
Dirt cover over USB connector
Carry strap
Battery charge LED indication
Short circuit protection
Overheat protection

Output (USB C)
10W USB PD, 5v 2A

Wireless
Bluetooth 5.0
TeamUP connection (SKAA) for up to 5 SKAA-enabled speakers

Pro Panel
2 × Combo (XLR and/or 6.3mm TRS) balanced inputs
1 × 3.5mm TRS stereo input
1 × 3.5mm TRS stereo output
Bond Button for advanced JOIN settings

Sound settings
Volume adjustment
Sound Profiles optimized for different spaces and occasions
Custom EQ
True stereo roles (left/right/mono)

Advanced Controls
Advanced TeamUp controls and settings
TeamUp Joined Volume Control
SKAA Pro Mode for reduced latency
EQ and Gain control for the two ProPanel inputs (XLR and/or 6.3mm TRS)
EQ and Gain presets for ProPanel inputs: Line-in, Mic, Guitar

Connection & Access
Remotely disconnect or power off
Auto-connect for Bluetooth audio
Security PIN code for app and audio connection
Mark as lost or stolen

Firmware & Warranty
Firmware updates via the app for sound and performance upgrades of your product
1-Year Extra Warranty upon registration

Why doesn't my Soundboks 4 come with a charger?
Due to the EU Radio Equipment Directive, the Soundboks 4 no longer include a charger. This policy aims to reduce electronic waste by encouraging the use of existing USB-C chargers. If you need a charger, you can purchase The Charger separately.

Can I play my Soundboks 4 while charging with The Battery?
Yes, you can play your Soundboks while charging, even at full volume. This requires the official Soundboks The Charger or a USB-C PD compliant power supply capable of delivering at least 65W.

How has the audio quality of the Soundboks 4 been improved?
We completely revamped the sound quality for more bass, better mids, and crisper highs. This has produced a way fuller and rounder sound.

How much longer is the battery life on the Soundboks 4 than the Soundboks 3?
20% longer at full blast which is about 6 hours in total.

How has the grill design been changed on the Soundboks 4?
The new grill has smaller holes and an easy detachable mechanism that allows you to pop it off, paint it, and pop it right back on. It now comes in both Metallic Grey and Black.

What is the usual playtime on a Soundboks 4?
The Battery in the Soundboks 4 (compatible with all Soundboks speakers) lasts for ~40 hours when playing music at mid-volume and ~6 hours at full volume depending on the amount of bass frequencies being played.

Do I need to use the Soundboks app with the Soundboks 4?
Nope, but we highly recommend it. You can play music wirelessly and use TeamUP to connect other Soundboks speakers without it. However, without the app you won’t be able to access the sound and performance upgrades. You’ll also miss out on the advanced controls and EQ profiles. Plus you can’t use TeamUp to assign speaker roles, and that stuff is really cool.

What is an OTA and why should I care?
Over-The-Air Updates (OTA) via the Soundboks App help keep your Soundboks performing at its absolute best just like updates on your other devices (phones, tablets, laptops). In addition to pumping out new features and content, our team is constantly working to improve the Soundboks experience through OTAs.

Do I need to register my Soundboks in the Soundboks app?
You don't have to, but there are a few benefits to doing it. If you want an additional year of warranty (on top of the standard Soundboks 2-year warranty) or want access to the full world of Soundboks (additional speaker security and the awesome features we’re currently developing) then you need to register.

Why does a Bluetooth speaker need to be durable?
We don’t know what your shindigs look like, but our parties and events are unpredictable. That's why we designed the Soundboks to be ready for almost anything while still sounding full and loud. The reinforced build and rubber bumpers means it can handle impact like a champ. The internal components of the Soundboks have an IP65 rating (though the bass ports mean that it should never be fully submerged), and the electronics and battery can play in temperatures from -10 to +40 °C (+14 to +104 °F).

Can I connect multiple Soundboks speakers wirelessly?
With TeamUp mode, absolutely. Using the amazing SKAA (pronounced like the musical genre) technology, your Soundboks can Host up to 4 Soundboks speakers in Join mode. You can also Join any Soundboks speakers that are in Host mode.

Can I connect instruments and microphones to the Soundboks 4?
You bet. The Soundboks 4, like Soundboks 3, includes the ProPanel with microphone (XLR) and mixer/instrument (TRS) inputs.
